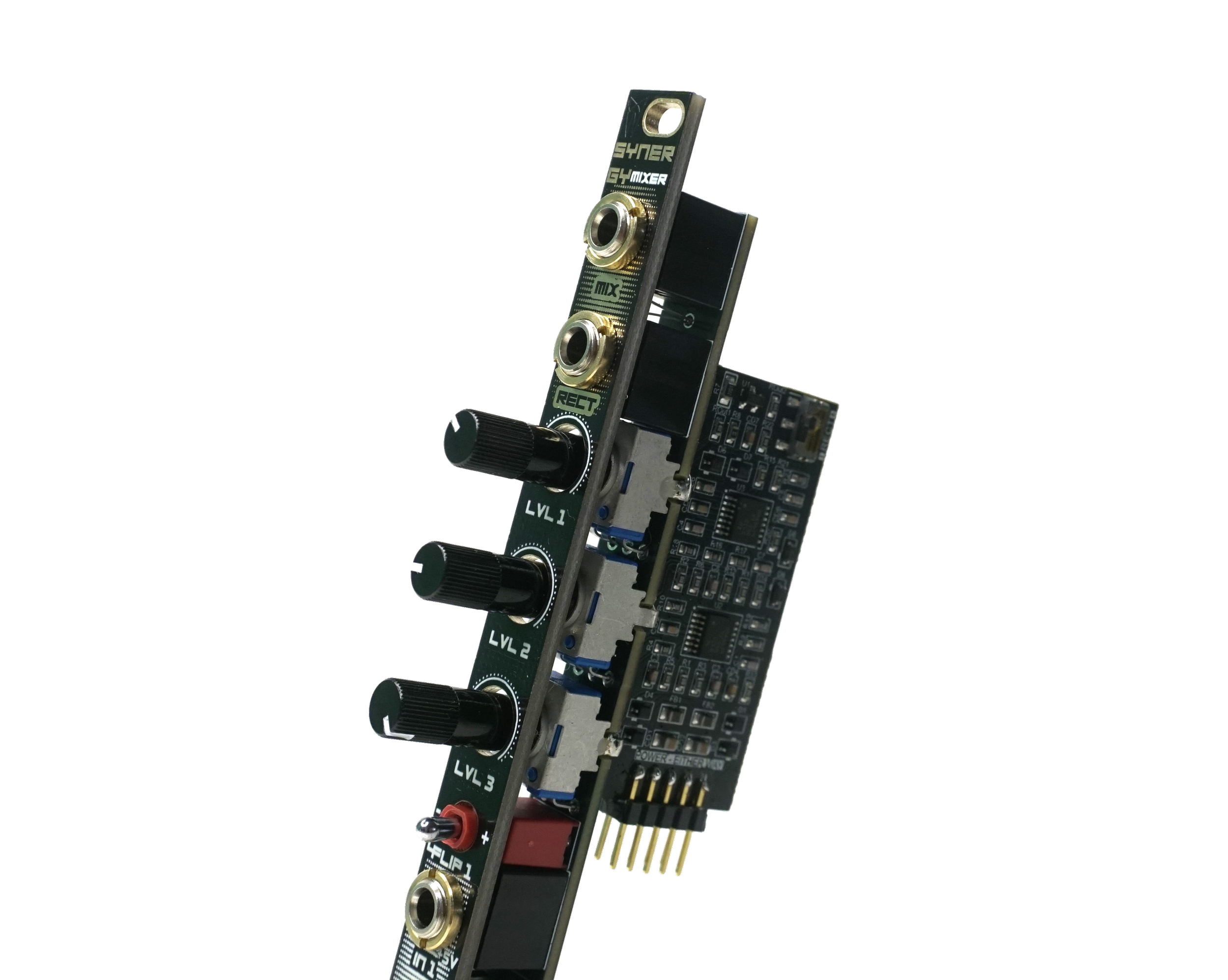

Synergy 3-Channel Mixer / Rectifier (2HP)
Introducing the Mega Modular Corp. SYNERGY, a highly efficient and versatile utility mixer engineered to enhance signal management and processing within any Eurorack modular ecosystem.
Measuring a mere 2hp wide and 38mm deep, the SYNERGY provides a powerful solution in a compact form, making it ideal for space-constrained racks and skiffs. This utility mixer features three independent input channels, each equipped with a dedicated level control, enabling seamless integration of both audio and CV signals. Its compact size is optimized for specialized functions such as waveform mixing, CV combination, voltage offsetting, and CV-controlled wavefolding, all of which would traditionally require larger, more complex modules.
Channel 1 offers additional advanced features, further enhancing the SYNERGY’s role as a critical tool for dynamic signal manipulation. A normalized +5V input allows this channel to serve as an offset generator when no other signal is present, enabling the application of an adjustable voltage offset that is seamlessly integrated with the signals from Channels 2 and 3. Furthermore, the “Flip 1” switch offers phase inversion capabilities, allowing users to invert the incoming signal or offset, thereby facilitating unique modulation and audio transformations. These specialized functionalities position the SYNERGY as not just a mixer, but a comprehensive utility module for intricate sound and CV manipulation.
The SYNERGY is equipped with two versatile output options to expand its capabilities: a traditional Mix Output that combines all three input channels into a single summed signal, and a Full-Wave Rectified Output, which “folds” the mixed voltage around 0V in either a positive or negative direction. With its high-quality build and precision-engineered circuitry, the SYNERGY ensures reliability and optimal performance, making it a key component for any professional modular setup.
The Mega Modular Corp. SYNERGY is the definitive solution for users seeking efficient, space-conscious, and flexible mixing and signal processing within their Eurorack systems. Its advanced feature set, combined with exceptional build quality, ensures it is an indispensable tool for both creative professionals and discerning enthusiasts alike.
Technical Specifications:
Ultra-compact DC-coupled Mixer with Full-Wave Rectifier
Separate Mix and Rectifier output jacks
On-PCB switch for selecting Positive or Negative Rectifier Output
Three Input channels with Level knobs for each channel
+5V normalized to Input 1 with nothing patched for use as an Offset voltage
Phase inversion switch for Channel 1
Eurorack modular format; 2hp width, 38mm Depth
Current draw: 18mA @ +12V, 16mA @ -12V
